Repeaters

Two of the W4CMB repeaters are located in Lavonia, GA just East of Lavonia Post Office. They are on a 150 ft tower and hold a 175 HAAT (Height Above Average Terrain). The 442.475 repeater is operating at 50 watts, and the 146.715 repeater is operating at 50 watts. The 443.200 repeater is located on the 911 tower off of Gerrard Road in Lavonia GA and it is operating at 25watts at around 175ft. Lastly the 146.890 Repeater is located in Carnesville on the 911 tower and is operating at 50 watts at a height of 150 feet.

W4CMB Repeaters

BandLocationFrequencyOffsetPL ToneInternet Linked
VHFLavonia146.715-0.6100No
UHFLavonia442.4755203.5No
UHFLavonia443.25151.4yes
VHFCarnesville146.895-0.6100no


Affiliate Repeaters







Simplex Calling Frequencies


For Local Band plan see link.




Estimated Coverage of the 146.715


Estimated Coverage of the 442.475

Estimated Coverage of the 146.8950


Estimated Coverage of the 443.200





NEW!
Estimated Coverage of the W4PFT Repeater
444.1125
Multi Mode


The W4PFT is a multi mode repeater currently supporting DMR
And P25 with places of supporting D-star in the future.
Below is the current DMR settings


Time Slot 2 is Full Time Linked to the following Talk Groups

North Georgia 31134
W4PFT TG 312486
South East Link 314722

If you would like to talk on the repeater remotely via a hotspot
use TG 312486 and your audio will be transmitted over the repeater.
This is great for when one is out of the area and wants to stay in touch
friends back home.

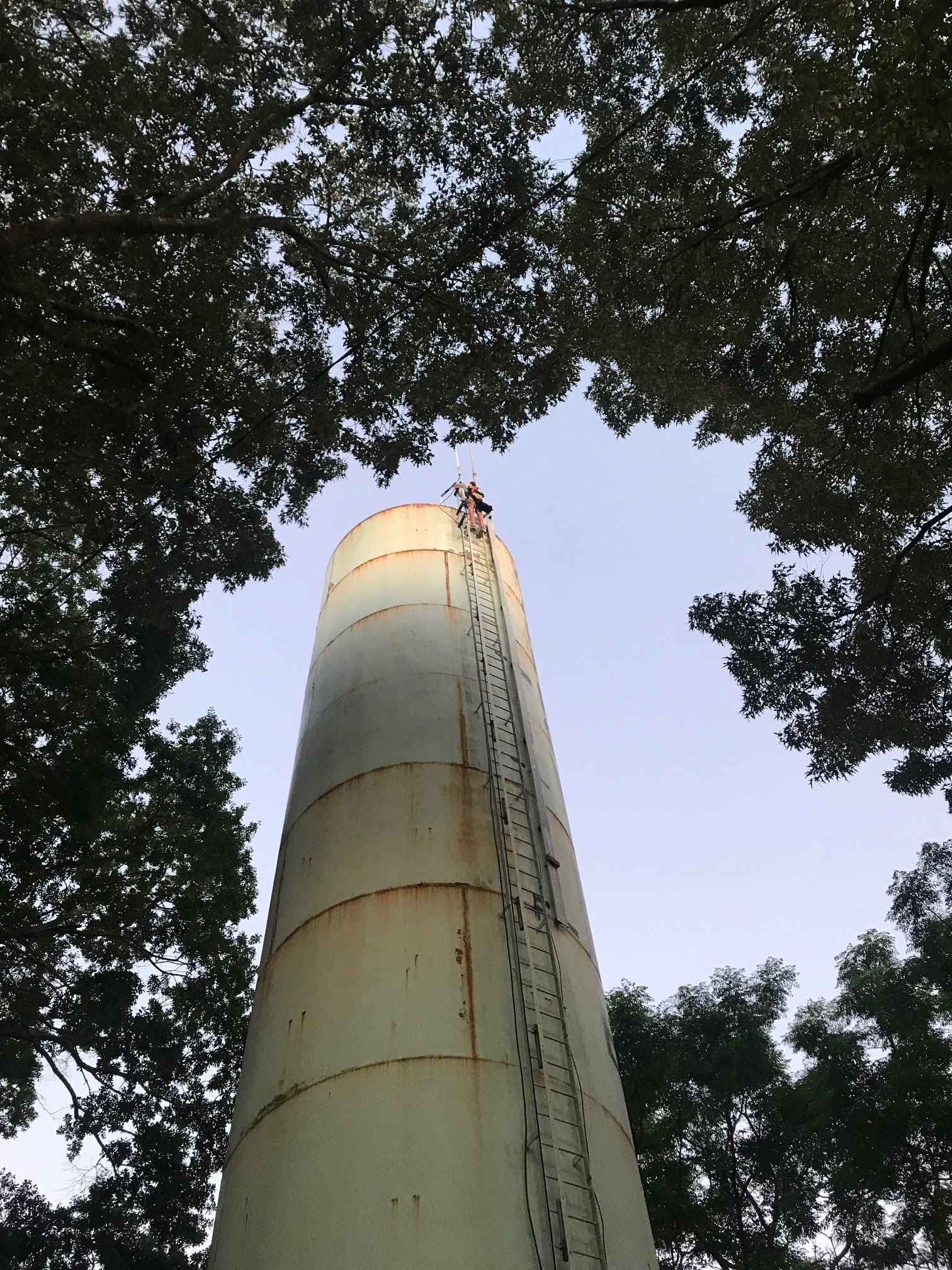

W4PFT Antenna Install






Photos Of Repeaters

Below is the 146.715 Repeater a Yaesu DR2x
This is configured in the AMS (auto mode select) setting.
If you key up in fusion it will repeat in fusion.
If you key up in analog it will repeat in analog.
It is currently not hooked to the full fusion net work.




Below is the 442.475 Repeater a Yaesu DRx1
This is configured in the AMS (auto mode select) setting.
If you key up in fusion it will repeat in fusion.
If you key up in analog it will repeat in analog.
It is currently not hooked to the full fusion net work.



The 146.895 Repeater is located on Franklin County 911 dispatch centers tower. It has emergency power. This repeater is now a Fusion repeater with 3 group DG ID set up.
DGID 00 Fusion link (not yet linked)
DGID 01 Local Fusion Traffic
DGID 03 Emergency Fusion Traffic





The 443.200 repeater is also located on a Franklin County dispatch tower located on Gerrard Road in Lavonia Ga.  This is now a FULL fusion repeater connected to the internet fusion network via RF link offsite. It is currently not linked but ready to accept your calls. Just press the Wires X button on the radio and off you go! Will connect to any Fusion Talk group for 30Min then reset.
This too is AMS. Analog and digital
DG ID 01
